Due In - 1 Medium & 1 Large Only - Call To Reserve.

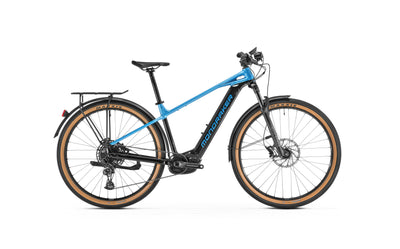

The 2022 Mondraker Prime RX is a super efficient, fast and fun all day electric hardtail mountain bike weapon.
All models feature Mondraker's world beating Forward Geometry frame design in all new Xtralite Alloy with an integrated Bosch powertube battery.
The Prime RX model is powered by the Bosch Performance Line G4 CX system w/Intube PowerTube 750Wh Bosch battery.
The high-quality aluminium frame in the typical Mondraker hardtail design is excellently processed and offers excellent stiffness values.
Thanks to the modern Forward Geometry efficiency, handling and safety are superior to the competition, so that the fun on the trail is unrivalled. T
The 120mm RockShox fork eliminates rough bumps. Uphill, the Prime really comes off thanks to the rigid hardtail rear, as no energy is wasted as is the case with a full suspension electric mountain bike.
Thanks to the SRAM Eagle 1x12-speed drive, you'll always find the right gear uphill as well as downhill.
FRAME: Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
SIZES: XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
FORK: RockShox 35 Silver RL 29, 120mm, Turn Key, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
HEADSET: Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
STEM: Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
HANDLEBAR: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
GRIPS: Onoff Twin, 1lock-on, 135mm
SEATPOST: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
SADDLE : Mondraker e-MTB custom design
FRONT BRAKE: Sram G2 R, 4 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE: Sram G2 R, 4 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER: Sram G2 R, tool-free reach adjust
RIMS: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
SPOKES: CN round stainless steel
FRONT HUB: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
REAR HUB: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
FRONT TYRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
REAR TYRE: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
CRANKSET: Race Face Aeffect ebike, 165mm
CHAINRING: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN: Sram SX Eagle, 12s, Powerlock
REAR DERRAILLEUR: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
SHIFT LEVERS: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE: Sram PG-1210, 11-50T, 12s
MOTOR: Bosch Performance Line CX Cruise (25Km/h) GEN4
BATTERY: Bosch Powertube 750Wh
DISPLAY: Bosch Kiox 300
DERAILLEUR HANGER: Mondraker M068
